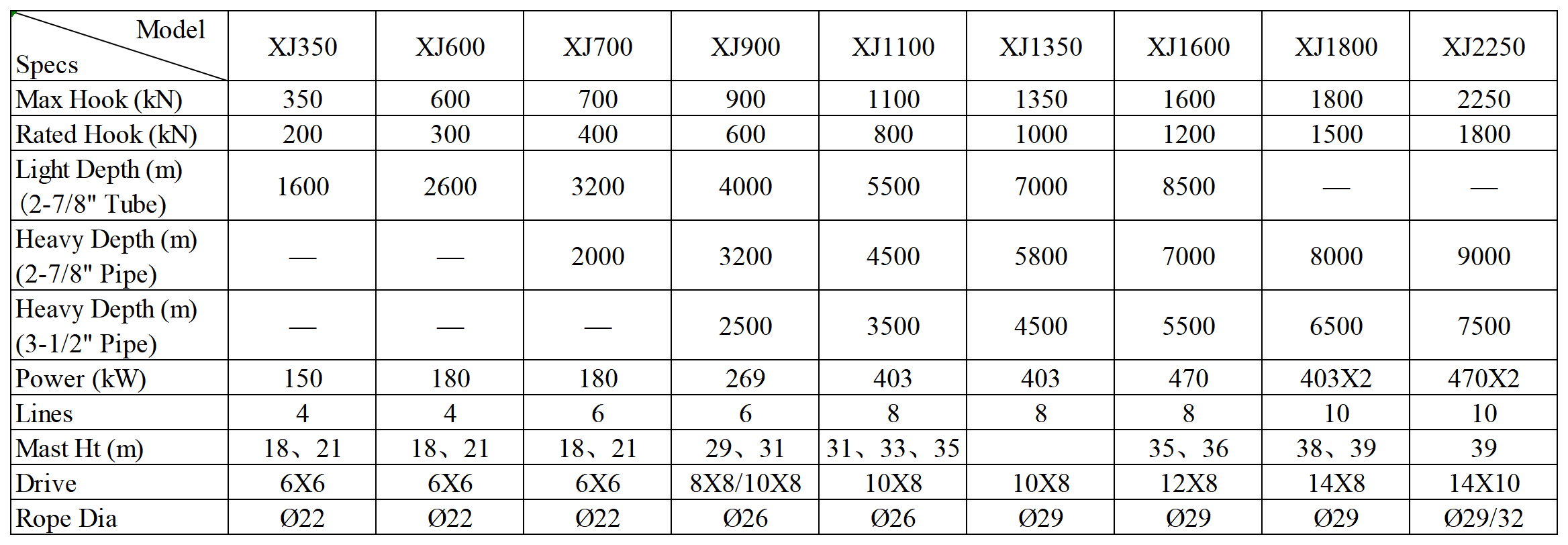

Workover Rig


Product Features:

• Workover rig equipped with reasonable power supply, high transmission efficiency, high reliability, compact structure and high degree of containerization;


• equipped with heavy-duty chassis,hydraulic power steering mechanism and double pipeline braking system, can adapt to the complex road conditions of the oilfield and has a long service life;


• The main drum is Lebus grooved. The main brake utilizes band brake or hydraulic disc brake, and the auxiliary brake utilizes pneumatic water-cooling disc brake. The bailing drum can be equipped optionally.


• Derrick design and manufacture in accordance with API 4F specification; •The mast is front-open and two-section telescopic front-inclined type, which is hydraulic lifted and telescopied; It adopts common ground-anchored guylines or self-guylines.


• The mast is telescopic type or parallelogram structure type, whose drill floor can be equipped with portable working platform as optional. The drilling floor, rotary table and its transmission system can be customized as required.


• Centralized control of electric, gas and hydraulic systems, easy to operate; The main parts and components utilizes international famous brand products with good reliability.


Well Flushing & Paraffin Removal Truck

Product Description:It is a special oil vehicle refitted from automotive chassis, mainly used for normal hot flushing and plug removal of oil wells, high-pressure flushing and pressure testing, paraffin removal from tubing and rods to cooperate with workover operation. It is also widely used for heating other media, unblocking & thawing ground pipelines, and cleaning equipment and other operations.



Technical Characteristics: It integrates multiple functions into one system such as high-pressure well flushing, hot well flushing, steam paraffin removal, and pressure testing, featuring stable media flow, high thermal efficiency, high utilization rate, long service life of the triplex plunger pump and truck-mounted special boiler, easy to operate, safe and reliable in ignition, and convenient to maintain and repair. It is an ideal solution for well flushing and paraffin removal operation in oil field.




Main Technical Parameters

Max. Cold Flushing Working Pressure: 35mpa

Max. Cold Flushing Displacement: 50m3/H

Max. Hot Flushing Working Pressure: 20mpa

Max. Hot Flushing Working Temperature: 160℃

Displacement at Max Hot Flushing Working Temperature:4.85m3/H

Max. Thermal Power of Truck-mounted Special Boiler:1000kW

Fuel Type of Truck-mounted Special Boiler:Light Diesel

Voltage:380VAC

Overall Dimension:9990mm×2550mm×3360mm

Curb Weight:18870kg

Max. Gross Weight:19000kg

Truck Chassis Parameters

Model:SX1259MC4C1/6X4 Truck Chassis

Emission Standard:GB17691-2018 ChinaⅥ,GB3847-2005

Engine Model:WP9H.350E62

Engine Power:257kW

wheelbase:4375mm+1400mm

Front / Rear Overhang:1525mm/2400mm

Tire Size:12.00R20 16PR

Brand:Shaanxi Automotive




Oil Production Truck

Product Description:It is a special oil vehicle with backward derrick raising structure, refitted from automotive chassis, integrating multiple functions into one, such as oil production, forced discharging, wellbore cleaning and fishing etc. It adopts pumping principle and uses oil well casing or tubing for oil production, forced discharging, oil testing operation. To operate the truck, operator only needs to align wireline with wellhead and run the tubing down to a certain depth of the liquid surface and then lift it up. Then the oil in the well can be pumped immediately and pressed into oil tuck tank or storage tank. It is an ideal solution and has strong maneuverability with advantages of low production cost, and adaptable to variety of well-site operations, easy to operate and convenient for maintenance and repair etc.




Main Technical Parameters

Max. Oil Production Operation Depth: 2850m

Max Lifting Load at Max. Drum Diameter:45kN

Max. Lifting Load at Max. Drum Diameter:120kN

Drum Capacity:3000m

Wireline Dia.:16mm

Derrick Structure: Truss Structure(The derrick tail is folding type)

Derrick Working Height:11m

Derrick Width:860mm

Max. Derrick Working Load:120kN

Overall Dimension:11520mm×2550mm×3980mm

Curb Weight:22870kg

Max. Gross Weight:23000kg



Truck Chassis Parameters:

Model:SX1259MC4C1/6X4 Truck Chassis

Emission Standard:GB17691-2018 ChinaⅥ,GB3847-2005

Engine Model:WP9H.350E62

Engine Power:257kW

wheelbase:4375mm+1400mm

Front / Rear Overhang:1525mm/2400mm

Tire Size:12.00R20 16PR

Brand:Shaanxi Automotive




Boiler Truck

Product Description: It is special oil truck refitted from automotive chassis, mainly designed to remove paraffin deposits from oil tubing and oil pipelines, thaw ground pipeline equipment, and dilute heavy oil as well as small displacement well hot flushing. It can also be widely used as an active heat source to heat other media and cleaning equipment.



Characteristics: Integrating multiple functions into one, such as flame inspection, over high temperature & voltage and remote monitoring, the truck is characterized by stable media flow,  high thermal efficiency, high utilization rate, extended service life of the triplex plunger pump and truck-mounted special boiler, easy to operate, safe and reliable in ignition, and convenient for maintenance and repair. It is an ideal solution for paraffin removal operation in oil field.




Main Technical Parameters

Max. Working Pressure:6MPa

Max. Working Temperature:200℃

Max. Displacement:1.26m3/h

Max. Thermal Power of Truck-mounted Special Boiler:700kW

Fuel Type of Truck-mounted Special Boiler:Light Diesel

Voltage:380VAC

Overall Dimension:9990mm×2550mm×3560mm

Curb Weight:22870kg

Max. Gross Weight:23000kg

Truck Chassis Parameters:

Model:SX1259MC4C1/6X4 Truck Chassis

Emission Standard:GB17691-2018 ChinaⅥ,GB3847-2005

Engine Model:WP9H.350E62

Engine Power:257kW

wheelbase:4375mm+1400mm

Front / Rear Overhang:1525mm/2400mm

Tire Size:12.00R20 16PR

Brand:Shaanxi Automotive




Fracturing truck

Product Description: It is a special oil truck refitted from automotive truck, applicable to various types of liquid pumping operations in oil and gas fields. It can be used for acidification and fracturing operations in shallow, medium-depth, and deep wells. Meanwhile, it is also applicable to well flushing, cementing, and wellhead pressure testing etc. The equipment can operate under humidity, rain and sandstorm and other climatic conditions and is capable of functioning in ambient temperatures ranging from -20°C to +45°C.



Technical Characteristics: With characteristics of high pressure, large displacement and high power, the equipment can perform operations either as a single unit or as part of a multi-unit combined one. Featuring real-time data monitoring, data processing and management, data acquisition, and automatic overpressure protection etc., It is an ideal solution for oilfield fracturing operations.




Main Technical Parameters

Max. Working Pressure:70MPa

Max. Displacement:1931L/min

Max. Output Power: 1400hp

Overall Dimension:12640mm×2550mm×3950mm

Curb Weight:36870kg

Max. Gross Weight:37000kg

Truck Chassis Parameters:

Model:ZZ5417V54EGF1 Truck Chassis

Emission Standard:GB17691-2018 ChinaⅥ,GB3847-2005

Engine Model:MC13.50-61

Engine Power:371kW

wheelbase:1800mm+5400mm+1400mm

Front / Rear Overhang:492mm/2550mm

Tire Size:315/80R22.5

Brand:Shaanxi Automotive
